Southeastern Catawba Co WD

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Southeastern Catawba Co WD   PWSID: 20-18-004
Mailing Address:P.O. Box 398
Hickory, NC 28603		Ownership:County

Contact Person:David CoxTitle:Assistant Public Utilities Director
Phone:828-323-7689Cell/Mobile:--

Secondary Contact:William Hamblin Phone:828-323-7427
Mailing Address:PO Box 398
Hickory, NC 28603		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Ductile Iron 6-30 75.00 %
Polyvinyl Chloride 2-12 25.00 %
What are the estimated total miles of distribution system lines?   81 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   65,029 Feet
How many meters were replaced in 2025?   76
How old are the oldest meters in this system?   25 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   77
What is this system's finished water storage capacity?   1.5000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes
Water Conservation
What type of rate structure is used?   Flat/Fixed, Uniform
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Catawba River (03-1)100 %
County(s)% of Service Population
Catawba100 %
What was the year-round population served in 2025?   5,589
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 2,200 0.2410 0 0.0000
Commercial 132 0.1418 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0477 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Town of Mooresville 01-49-015 0.0000 0 0.5000 No Yes 16 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.4376 May 0.5106 Sep 0.4821
Feb 0.3180 Jun 0.4340 Oct 0.5996
Mar 0.3366 Jul 0.4851 Nov 0.5532
Apr 0.3535 Aug 0.4815 Dec 0.5274

SECC is direct read and billed monthly system, therefore there are no max day readings. There is no master meter to measure total flow for this system.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Hickory 01-18-010 0.4599 365 1.0000 2040 Yes Yes 12&30 Regular

4. Wastewater Information

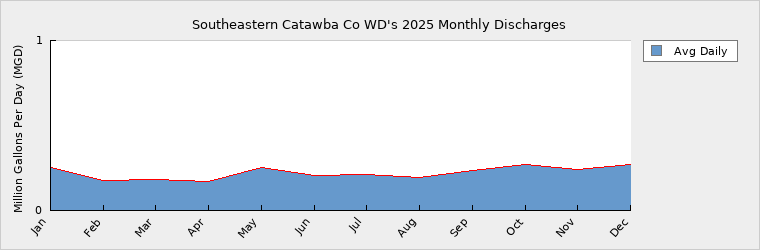

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2513 May 0.2536 Sep 0.2357
Feb 0.1778 Jun 0.2086 Oct 0.2709
Mar 0.1847 Jul 0.2119 Nov 0.2418
Apr 0.1721 Aug 0.1963 Dec 0.2712

How many sewer connections does this system have?   1,360
How many water service connections with septic systems does this system have?   841
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   Yes

Currently in design phase to expand Hickory Catawba WWTP (NC0025542) to 3.0 MGD.

Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0025542 WWTP 1.5000 1.5000 0.3937 Lyle Creek Catawba River (03-1)

The 0.3937 MGD of effluent discharged to Lyle Creek from the Hickory Catawba plant includes the 0.0668 MGD coming from Hickory Catawba customers (shown under "Interconnections"), as well as that from SECC customers. Also note that the average monthly discharges above account only for the SECC customers.


Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
City of Hickory Catawba System 01-18-040 Discharging 0.2230 365 0.7500

Wastewater is calculated for individual meter readings of customer use. There is no master meter for these readings. The Southeast Catawba System discharges 0.2230 MGD. The Town of Catawba discharges the 0.0668 MGD.

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 5,589 6,036 6,519 6,845 7,187 7,546
Seasonal Population 0 0 0 0 0 0

Residential 0.2410 0.2602 0.2811 0.2951 0.3099 0.3254
Commercial 0.1418 0.1531 0.1654 0.1736 0.1823 0.1914
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0477 0.0515 0.0556 0.0584 0.0613 0.0644
Unaccounted-for 0.0294 0.0319 0.0344 0.0361 0.0379 0.0398
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000
Service Area Demand 0.4599 0.4967 0.5365 0.5632 0.5914 0.6210
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.4599 0.4967 0.5365 0.5632 0.5914 0.6210
Demand as Percent of Supply 46% 50% 54% 56% 59% 62%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 43 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
