Southern Outer Banks Water

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Southern Outer Banks Water   PWSID: 60-27-001
Mailing Address:734 Ocean Trail
Corolla, NC 27927		Ownership:County

Contact Person:Cody EdwardsTitle:SOBWS Superintendent
Phone:252-453-2620Cell/Mobile:252-202-9695
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Polyvinyl Chloride 2-16 100.00 %
What are the estimated total miles of distribution system lines?   66 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   255
How old are the oldest meters in this system?   15 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   175
What is this system's finished water storage capacity?   3.6960 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   Yes
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, 2 Years or More
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

Meters

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   No

not feasible or necessary

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Albemarle Sound (12-1)100 %
County(s)% of Service Population
Currituck100 %
What was the year-round population served in 2025?   765
What was the seasonal population and months served in 2025? (if applicable)   16,550 ( Jun Jul Aug )
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 3,828 0.3500 0 0.0000
Commercial 211 0.2850 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   1.0500 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Ocean Sands Development 04-27-105 0.1490 365 Yes Yes 2-12 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 1.0820 May 2.3500 Sep 2.4070
Feb 1.1010 Jun 3.1150 Oct 1.9620
Mar 1.3340 Jul 3.3820 Nov 1.4050
Apr 2.0440 Aug 3.1670 Dec 1.2880

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
Corolla Light South 0.0910 120 0.2880 Regular
Fairwinds Ln. 0.0000 0 0.0500 2016 Emergency
Franklyn Street 0.4560 330 0.4930 Regular
Hwy 12 Well #10 0.0050 365 0.0290 Regular
Hwy 12 well #1 0.0071 356 0.0290 Regular
Hwy 12 Well #11 0.0000 0 0.0290 Regular
Hwy 12 well #12 0.0070 365 0.0290 Regular
Hwy 12 Well #13 0.0050 365 0.0290 Regular
Hwy 12 Well #14 0.0060 365 0.0290 Regular
Hwy 12 Well #15 0.0070 365 0.0290 Regular
Hwy 12 Well #16 0.0000 0 0.0290 Regular
Hwy 12 Well #17 0.0060 365 0.0290 Regular
Hwy 12 well #18 0.0030 280 0.0290 Regular
Hwy 12 Well #19 0.0030 365 0.0290 Regular
Hwy 12 Well #2 0.0090 180 0.0290 Regular
Hwy 12 Well #20 0.0040 365 0.0290 Regular
Hwy 12 Well #21 0.0040 365 0.0290 Regular
Hwy 12 Well #22 0.0050 365 0.0290 Regular
Hwy 12 Well #3 0.0090 180 0.0290 Regular
Hwy 12 Well #4 0.0090 180 0.0290 Regular
Hwy 12 Well #5 0.0060 180 0.0290 Regular
Hwy 12 Well #6 0.0060 365 0.0290 Regular
Hwy 12 Well #7 0.0040 365 0.0290 Regular
Hwy 12 Well #8 0.0060 365 0.0290 Regular
Hwy 12 Well #9 0.0050 365 0.0290 Regular
O.S. Pump #1 Well (1-4) 0.0190 365 0.0610 Regular
O.S. Pump #2 Well (5-10) 0.0000 0 0.0570 Regular
O.S. Pump #3 Well (11-16) 0.0200 280 0.0580 Regular
O.S. Pump #4 Well (17-20) 0.0370 280 0.0980 Regular
O.S. Pump #5 Well (21-26) 0.0340 280 0.1300 Regular
Ocean Hill Blvd 0.1170 365 0.0720 Regular
Sailfish 0.2860 155 0.1580 Regular
Shad St. 0.3550 350 0.1880 Regular
SOBWS Pump #1 Well (27-30) 0.0000 0 0.0680 Regular
SOBWS Pump #2 Well (31-34) 0.0240 280 0.0680 Regular
SOBWS Pump #3 Well (35-38) 0.0100 175 0.0690 Regular
SOBWS Pump #4 Well (39-42) 0.0000 0 0.0680 Regular
Sturgeon St. 0.1580 345 0.1840 Regular
Whalehead Well 0.8800 320 0.7120 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
Corolla Light South 225 160 160 225 8 140 Yes
Fairwinds Ln. 200 180 180 200 8 80 Yes
Franklyn Street 230 150 150 225 12 120 Yes
Hwy 12 Well #10 55 45 45 55 6 45 Yes
Hwy 12 well #1 55 45 45 54 6 45 Yes
Hwy 12 Well #11 55 45 45 55 6 45 Yes
Hwy 12 well #12 55 45 45 55 6 45 Yes
Hwy 12 Well #13 56 46 46 56 6 45 Yes
Hwy 12 Well #14 55 45 45 55 6 45 Yes
Hwy 12 Well #15 59 49 49 59 6 45 Yes
Hwy 12 Well #16 61 51 51 61 6 45 Yes
Hwy 12 Well #17 59 49 49 59 6 45 Yes
Hwy 12 well #18 59 49 49 59 6 45 Yes
Hwy 12 Well #19 59 49 49 59 6 45 Yes
Hwy 12 Well #2 63 53 53 63 6 45 Yes
Hwy 12 Well #20 55 45 45 55 6 45 Yes
Hwy 12 Well #21 55 45 45 55 6 45 Yes
Hwy 12 Well #22 55 45 45 55 6 45 Yes
Hwy 12 Well #3 63 53 53 63 6 45 Yes
Hwy 12 Well #4 64 54 54 64 6 45 Yes
Hwy 12 Well #5 62 52 52 62 6 45 Yes
Hwy 12 Well #6 59 49 49 59 6 45 Yes
Hwy 12 Well #7 57 47 47 57 6 45 Yes
Hwy 12 Well #8 55 45 45 55 6 45 Yes
Hwy 12 Well #9 56 45 45 55 6 45 Yes
O.S. Pump #1 Well (1-4) 25 15 15 25 2 Yes
O.S. Pump #2 Well (5-10) 25 15 15 25 2 Yes
O.S. Pump #3 Well (11-16) 25 15 15 25 2 Yes
O.S. Pump #4 Well (17-20) 25 15 15 25 2 Yes
O.S. Pump #5 Well (21-26) 25 15 15 25 2 Yes
Ocean Hill Blvd 215 180 180 215 8 80 Yes
Sailfish 225 180 180 220 4 168 Yes
Shad St. 225 183 183 223 8 80 Yes
SOBWS Pump #1 Well (27-30) 45 30 30 45 2 Yes
SOBWS Pump #2 Well (31-34) 45 30 30 45 2 Yes
SOBWS Pump #3 Well (35-38) 45 30 30 45 2 Yes
SOBWS Pump #4 Well (39-42) 45 30 30 45 2 Yes
Sturgeon St. 215 178 178 213 8 80 Yes
Whalehead Well 255 185 185 253 12 120 Yes
Are ground water levels monitored?   Yes, Quarterly
Does this system have a wellhead protection program?   No
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Southern Outer Banks 3.8000 Yes Yes Ground Water Wells
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

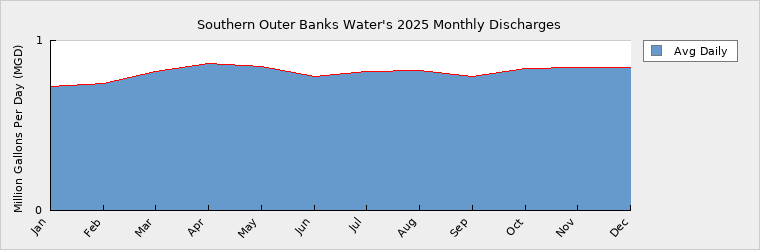

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.7310 May 0.8480 Sep 0.7890
Feb 0.7460 Jun 0.7880 Oct 0.8370
Mar 0.8160 Jul 0.8170 Nov 0.8400
Apr 0.8670 Aug 0.8250 Dec 0.8400

How many sewer connections does this system have?   2,325
How many water service connections with septic systems does this system have?   1,225
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0087670 WTP 1.1700 1.1700 0.8120 Atlantic Ocean Albemarle Sound (12-1)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 765 780 825 850 875 900
Seasonal Population 16,550 0 0 0 0 0

Residential 0.3500 0.3050 0.3200 0.3750 0.4270 0.4600
Commercial 0.2850 0.1900 0.2000 0.2300 0.2600 0.2850
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 1.0500 1.0000 1.0000 1.0000 1.0000 1.0000
Unaccounted-for 0.3184 0.0000 0.0000 0.0000 0.0000 0.0000
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 3.4100 3.4100 3.4100 3.4100 3.4100 3.4100
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 3.4100 3.4100 3.4100 3.4100 3.4100 3.4100
Service Area Demand 2.0034 1.4950 1.5200 1.6050 1.6870 1.7450
Sales 0.1490 0.1490 0.1490 0.1490 0.1490 0.1490
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 2.1524 1.6440 1.6690 1.7540 1.8360 1.8940
Demand as Percent of Supply 63% 48% 49% 51% 54% 56%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 458 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No changes

Are there other demand management practices you will implement to reduce your future supply needs?   No changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   no changes

How does the water system intend to implement the demand management and supply planning components above?   no changes

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
