Iredell Water Corporation

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Iredell Water Corporation   PWSID: 01-49-025
Mailing Address:P. O. Box 1844
Statesville, NC 28687-1844		Ownership:Non-Profit

Contact Person:Danny SloanTitle:General Manager/ CEO
Phone:704-876-0672Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 6.97 %
Ductile Iron 3-12 2.10 %
Other 2-8 0.75 %
Polyvinyl Chloride 2-12 90.18 %
What are the estimated total miles of distribution system lines?   461 Miles
How many feet of distribution lines were replaced during 2025?   300 Feet
How many feet of new water mains were added during 2025?   4,627 Feet
How many meters were replaced in 2025?   35
How old are the oldest meters in this system?   4 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   0
What is this system's finished water storage capacity?   2.6500 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

Water main information is derived from updated GIS records.

**Iredell Water does not operate a wastewater system, and most users have private septic systems. While we do install irrigation only meters, many older meters were installed for both potable and irrigation use. This is an unknown figure so zero is entered. There are two municipalities that operate wastewater systems in our service area

Programs
Does this system have a program to work or flush hydrants?   Yes, As Needed
Does this system have a valve exercise program?   No, As Needed
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

Conservation rate structure for system was made effective 1/1/2026.
Minimum of $15.00 plus usage below
0-5,000gals= $5.00 per 1,000gals,
5,000-10,000gals= $5.250 per 1,000gals
10,000+gals= $5.50 per 1,000gals

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
South Yadkin River (18-2)100 %
County(s)% of Service Population
Iredell100 %
What was the year-round population served in 2025?   28,325
Has this system acquired another system since last report?   No

As of December 31, 2025 Iredell Water served 11,330 active services. Population is derived by multiplying active services by 2.5

Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 10,706 1.4916 0 0.0000
Commercial 479 0.2771 0 0.0000
Industrial 16 0.0722 0 0.0000
Institutional 129 0.0474 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0239 MGD

Residential includes single family residences and all irrigation
Commercial Includes all commercial, fire protection, agricultural, and multi-family

19,000 per day for cL2 analyzers (0.019 mgd)
1.789M gals for scheduled flushing/washouts throughout the year (0.0049)

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
CHIPLEY PARK SD 01-49-106 0.0000 0 0.0000 No Yes 2 Regular
RIVER HILL HEIGHTS S/D 01-49-133 0.0038 365 0.0000 No Yes 2 Regular

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 2.1210 2.3350 May 2.2180 2.4470 Sep 2.4080 2.6920
Feb 2.0520 2.3090 Jun 2.3340 2.7220 Oct 2.2490 2.5030
Mar 2.0900 2.3690 Jul 2.4450 2.8420 Nov 2.0850 2.3430
Apr 2.1790 2.4930 Aug 2.2920 2.6440 Dec 2.0820 2.3500

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
E01 0.1290 365 0.170 0.1836 Regular
E02 0.1450 365 0.199 0.1584 Regular
E04 0.0720 362 0.108 0.0914 Regular
E05 0.0230 333 0.092 0.0533 Regular
E06 0.0180 362 0.060 0.0907 Regular
E10 0.0910 277 0.120 0.3024 2025 Regular
E11 0.0220 363 0.038 0.0302 Regular
E12 0.0610 354 0.081 0.0792 Regular
E13 0.0370 365 0.046 0.1008 Regular
E14 0.0190 365 0.046 0.1195 Regular
E15 0.0520 364 0.087 0.0907 Regular
E16 0.0320 352 0.043 0.0806 Regular
E18 0.0340 365 0.038 0.0907 Regular
E19 0.0160 363 0.024 0.0281 Regular
E20 0.0960 365 0.122 0.1440 Regular
E21 0.1130 365 0.169 0.1260 Regular
E22 0.0300 357 0.039 0.1044 Regular
E23 0.0020 364 0.004 0.0238 Regular
E25 0.0180 358 0.066 0.1476 Regular
E26 0.1030 352 0.136 0.1728 Regular
E27 0.0380 358 0.084 0.1044 Regular
E28 0.0780 347 0.140 0.2376 Regular
E29 0.0310 324 0.061 0.2088 Regular
E30 0.0180 359 0.044 0.0288 Regular
E31 0.0430 344 0.087 0.0936 Regular
E32 0.0410 362 0.064 0.0720 Regular
E33 0.0920 355 0.112 0.1404 Regular
E34 0.0170 358 0.038 0.0756 Regular
E35 0.1020 364 0.247 0.2304 Regular
E36 0.0130 364 0.015 0.0288 Regular
E37 0.0850 364 0.129 0.0972 Regular
E38 0.1660 337 0.282 0.3132 Regular
E39 0.1820 365 0.309 0.2909 Regular
E40 0.0580 365 0.132 0.1620 Regular
E43 0.0560 357 0.089 0.1037 Regular
E44 0.0520 357 0.090 0.1008 Regular
E45 0.0930 90 0.139 0.1548 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
E01 460 81 0 0 6 147 Yes
E02 605 88 0 0 8 126 Yes
E04 605 52 0 0 8 315 Yes
E05 825 133 8 505 Yes
E06 307 40 0 0 6 147 Yes
E10 245 31 0 0 8 126 Yes
E11 905 52 8 315 Yes
E12 315 111 0 0 6 210 Yes
E13 305 50 0 0 8 147 Yes
E14 345 86 0 0 8 315 Yes
E15 315 111 0 0 6 273 Yes
E16 190 40 0 0 6 168 Yes
E18 142 37 0 0 6 126 Yes
E19 505 85 0 0 6 315 Yes
E20 805 53 8 200 Yes
E21 905 70 0 0 8 210 Yes
E22 405 108 0 0 6 210 Yes
E23 545 83 0 0 6 504 Yes
E25 425 47 0 0 8 210 Yes
E26 405 52 0 0 8 231 Yes
E27 565 60 0 0 8 504 Yes
E28 305 52 0 0 8 189 Yes
E29 385 64 0 0 8 315 Yes
E30 725 57 0 0 8 244 Yes
E31 565 53 0 0 8 294 Yes
E32 725 94 0 0 8 609 Yes
E33 825 70 0 0 8 399 Yes
E34 825 71 8 147 Yes
E35 485 70 8 315 Yes
E36 985 52 8 609 Yes
E37 645 164 8 546 Yes
E38 547 68 8 399 Yes
E39 750 64 8 336 Yes
E40 905 85 8 357 Yes
E43 1005 67 8 462 Yes
E44 765 65 8 462 Yes
E45 1005 62 8 336 Yes
Are ground water levels monitored?   Yes, Daily
Does this system have a wellhead protection program?   Yes

IWC is currently monitoring ground water levels at 16 wells. Levels are monitored continuously through the SCADA system.
Our Wellhead Protection Plan was most recently approved in 2021.

12-hour supply were all researched and updated to match 24-hour pump records on file. If no record of 24hr pump test was found, we used the approved yield recorded in NCDEQ Drinking Water Watch.

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
City of Statesville (James Farm) 01-49-010 0.0680 102 1.0000 2122 No Yes 6 Regular
City of Statesville (Salisbury Hwy) 01-49-010 0.0970 76 Yes 8 Regular
Energy United WC 01-02-015 0.0200 365 0.0000 2037 No Yes 6 Regular

Figures below directly from our 2025 NCDEQ Monthly Operating Reports:
Energy United Water Purchase = 7,441,000 gals. Total used 365 days
James Farm Connection total was 7,035,094 gals for 102 days used.
Wayside Connection total was 7,436,324 gals for 76 days used.

In 2023 a new Water Supply and Purchase Agreement was entered into with the City of Statesville with a 99-year term to allow for purchase of 31 million gallons per month.

Statesville reports the total for the two connections whereas Iredell reports individually.

4. Wastewater Information

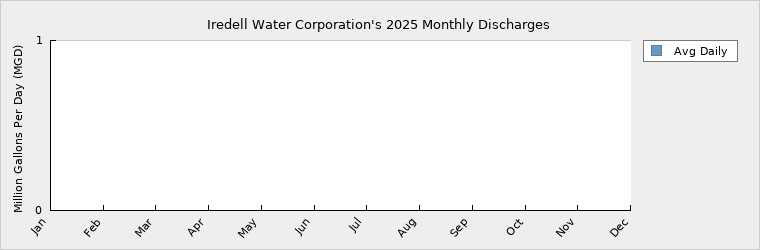

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.0000 May 0.0000 Sep 0.0000
Feb 0.0000 Jun 0.0000 Oct 0.0000
Mar 0.0000 Jul 0.0000 Nov 0.0000
Apr 0.0000 Aug 0.0000 Dec 0.0000

How many sewer connections does this system have?   0
How many water service connections with septic systems does this system have?   0
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No

Iredell Water does not operate any wastewater facilities and does not track septic system.

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 28,325 30,718 36,344 41,969 47,595 53,220
Seasonal Population 0 0 0 0 0 0

Residential 1.4916 1.5050 1.7472 2.0277 2.3531 2.7309
Commercial 0.2771 0.3670 0.4650 0.5630 0.6620 0.7600
Industrial 0.0722 0.1220 0.1700 0.2180 0.2670 0.3150
Institutional 0.0474 0.0740 0.0760 0.0780 0.0800 0.0820
System Process 0.0239 0.0000 0.0000 0.0000 0.0000 0.0000
Unaccounted-for 0.2888 0.3123 0.3713 0.4360 0.5078 0.5872
Future Supply Sources
Source Name PWSID Source Type Additional Supply Year Online Year Offline Type
E41 01-49-025 Ground 0.0576 2027 Regular
E46 01-49-025 Ground 0.0850 2026 Regular
E48 01-49-025 Ground 0.0504 2028 Regular
E49 01-49-025 Ground 0.0900 2027 Regular
E50 01-49-025 Ground 0.1764 2026 Regular
E53 01-49-025 Ground 0.0720 2027 Regular
E54 01-49-025 Ground 0.0742 2028 Regular
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 4.6612 4.3588 4.3588 4.3588 4.3588 4.3588
Purchases 1.1170 1.1170 1.0970 1.0970 1.0970 1.0970
Future Supplies 0.6056 0.6056 0.6056 0.6056 0.6056
Total Available Supply (MGD) 5.7782 6.0814 6.0614 6.0614 6.0614 6.0614
Service Area Demand 2.2010 2.3803 2.8295 3.3227 3.8699 4.4751
Sales 0.0038 0.0038 0.0038 0.0038 0.0038 0.0038
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 2.2048 2.3841 2.8333 3.3265 3.8737 4.4789
Demand as Percent of Supply 38% 39% 47% 55% 64% 74%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 53 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No changes

Are there other demand management practices you will implement to reduce your future supply needs?   In 2026 Iredell Water implemented a conservation-based rate structure.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   Iredell Water Corporation is currently conducting a Water Treatment Plant Feasibility Study which should be completed in 2026. This study includes local stake holder meetings with surrounding utilities and will look at options of additional well supply, new surface treatment plant(s), and purchase sources and if /how we may partner with other local utilities to plan for future water supplies in our area.

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
