Gibsonville

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Provisional

Water System Name: Gibsonville   PWSID: 02-41-025
Mailing Address:129 W. Main Street
Gibsonville, NC 27249		Ownership:Municipality

Contact Person:James Robert Elliott (Rob)Title:Public Works Director
Phone:336-449-7188Cell/Mobile:--

Secondary Contact:Josh Johnson Phone:336-226-5534
Mailing Address:P.O. Box 1179
Burlington, NC 27216		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-8 3.00 %
Ductile Iron 3-12 67.00 %
Galvanized Iron 1-4 2.00 %
Polyvinyl Chloride 2-12 28.00 %
What are the estimated total miles of distribution system lines?   61 Miles
How many feet of distribution lines were replaced during 2025?   0 Feet
How many feet of new water mains were added during 2025?   17,605 Feet
How many meters were replaced in 2025?   55
How old are the oldest meters in this system?   21 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   334
What is this system's finished water storage capacity?   1.0290 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   No
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Flat/Fixed
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Haw River (02-1)100 %
County(s)% of Service Population
Guilford51 %
Alamance49 %
What was the year-round population served in 2025?   9,882
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 4,323 0.4712 0 0.0000
Commercial 212 0.0651 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0110 MGD

Currently the Town of Gibsonville's water system only distinguishes between residential and commercial meters. New billing software may allow subclassifying commercial establishments.

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Elon 02-01-025 0.0000 0 0.0000 2023 Yes Yes 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.5795 May 0.5844 Sep 0.7615
Feb 0.5535 Jun 0.6486 Oct 0.6827
Mar 0.5048 Jul 0.6605 Nov 0.5695
Apr 0.5814 Aug 0.6377 Dec 0.6865

Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Burlington 02-01-010 0.6212 365 2.5000 2030 Yes Yes 12 Regular
Elon 02-01-025 0.0000 0 0.0000 2023 Yes Yes 8 Emergency

4. Wastewater Information

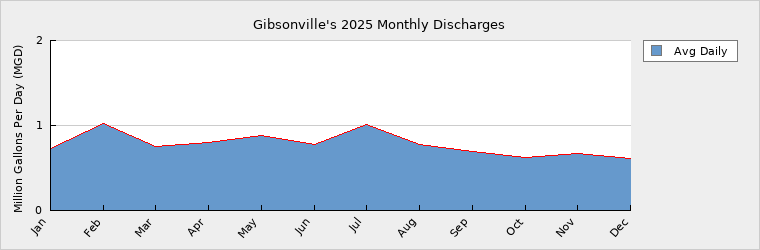

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.7283 May 0.8832 Sep 0.6894
Feb 1.0228 Jun 0.7802 Oct 0.6286
Mar 0.7501 Jul 1.0069 Nov 0.6670
Apr 0.8013 Aug 0.7822 Dec 0.6175

How many sewer connections does this system have?   4,213
How many water service connections with septic systems does this system have?   122
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
wqcs00349 CS 0.0000 0.0000 0.0000 Multiple Haw River (02-1)
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Burlington 02-01-010 Discharging 0.7783 365 1.5500

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 9,882 10,910 13,300 16,212 19,762 24,090
Seasonal Population 0 0 0 0 0 0

Residential 0.4712 0.5202 0.6342 0.7730 0.9423 1.1487
Commercial 0.0651 0.0719 0.0876 0.1068 0.1302 0.1587
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0110 0.0121 0.0148 0.0180 0.0220 0.0268
Unaccounted-for 0.0739 0.0816 0.0995 0.1213 0.1479 0.1803
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 2.5000 2.5000 2.5000 2.5000 2.5000 2.5000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 2.5000 2.5000 2.5000 2.5000 2.5000 2.5000
Service Area Demand 0.6212 0.6858 0.8361 1.0191 1.2424 1.5145
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.6212 0.6858 0.8361 1.0191 1.2424 1.5145
Demand as Percent of Supply 25% 27% 33% 41% 50% 61%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 48 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   Continued use of low flow toilets and other consumer related reductions.

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   Ongoing discussions with the water supplier, City of Burlington

How does the water system intend to implement the demand management and supply planning components above?   Water and Sewer Master Plans

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, Through the Town's own growth plans and by assisting the City of Burlington through smart growth planning.

What major water supply reports or studies were used for planning?  Town's water and sewer master plan and through system modeling with Hazen and Sawyer.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Continued understanding and coordination of future regulatory needs.
