Carthage

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Carthage   PWSID: 03-63-025
Mailing Address:4396 Hwy 15-501
Carthage, NC 28327		Ownership:Municipality

Contact Person:Emily YoppTitle:Town Manager
Phone:910-947-2331Cell/Mobile:--

Secondary Contact:David McKew Phone:910-947-2701
Mailing Address:400 Vass Carthage Road
Carthage, NC 28327		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 6-12 10.00 %
Cast Iron 6-8 20.00 %
Ductile Iron 6-12 5.00 %
Galvanized Iron 1.-2. 4.00 %
Polyvinyl Chloride 1-12 61.00 %
What are the estimated total miles of distribution system lines?   35 Miles
How many feet of distribution lines were replaced during 2025?   70 Feet
How many feet of new water mains were added during 2025?   869 Feet
How many meters were replaced in 2025?   13
How old are the oldest meters in this system?   5 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   47
What is this system's finished water storage capacity?   0.8000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No
Programs
Does this system have a program to work or flush hydrants?   Yes, Monthly
Does this system have a valve exercise program?   Yes, Semi-Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   No
Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0285 MGD   For how many connections?   1
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Cape Fear River (02-3)100 %
County(s)% of Service Population
Moore100 %
What was the year-round population served in 2025?   2,775
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 1,432 0.2480 0 0.0000
Commercial 221 0.0490 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 4 0.0580 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0000 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Southern Pines 03-63-010 0.0000 0 0.0000 2060 Yes No 8 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.3300 0.3850 May 0.3820 0.4280 Sep 0.3950 0.4630
Feb 0.3550 0.3850 Jun 0.3740 0.4510 Oct 0.3510 0.4070
Mar 0.3490 0.3850 Jul 0.3770 0.4370 Nov 0.2840 0.3870
Apr 0.3640 0.4250 Aug 0.3770 0.4460 Dec 0.2970 0.3990

Surface Water Sources
Stream Reservoir Average Daily Withdrawal Maximum Day
Withdrawal (MGD)		 Available Raw
Water Supply		 Usable On-Stream
Raw Water Supply
Storage (MG)
MGD Days Used MGD * Qualifier
Nicks Creek Carthage Water Plant Reservoir 0.3530 365 0.4630 1.0000 F 1.0000

* Qualifier: C=Contract Amount, SY20=20-year Safe Yield, SY50=50-year Safe Yield, F=20% of 7Q10 or other instream flow requirement, CUA=Capacity Use Area Permit

Surface Water Sources (continued)
Stream Reservoir Drainage Area
(sq mi)		 Metered? Sub-Basin County Year
Offline		 Use
Type
Nicks Creek Carthage Water Plant Reservoir 200 Yes Cape Fear River (02-3) Moore Regular
What is this system's off-stream raw water supply storage capacity?   19 Million gallons
Are surface water sources monitored?   Yes, Weekly
Are you required to maintain minimum flows downstream of its intake or dam?   No
Does this system anticipate transferring surface water between river basins?   No
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Southern Pines 03-63-010 0.0670 97 0.5000 2060 Yes Yes 8 Regular

Changed purchase contract from emergency to regular due to use greater than 30 days.

Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Carthage Water Plant 1.0000 Yes Yes Raw Water Reservoir / Nicks Creek
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

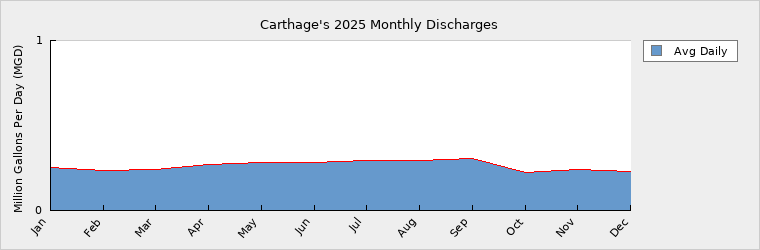

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2500 May 0.2810 Sep 0.3030
Feb 0.2360 Jun 0.2850 Oct 0.2240
Mar 0.2440 Jul 0.2920 Nov 0.2440
Apr 0.2710 Aug 0.2970 Dec 0.2270

How many sewer connections does this system have?   685
How many water service connections with septic systems does this system have?   452
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Interconnections
Water System PWSID Type Average Daily Amount Contract
Maximum (MGD)
MGD Days Used
Moore County 03-63-025 Discharging 0.2600 365

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 2,775 2,914 2,972 3,031 3,092 3,154
Seasonal Population 0 0 0 0 0 0

Residential 0.2480 0.2600 0.2650 0.2700 0.2750 0.2800
Commercial 0.0490 0.0510 0.0520 0.0530 0.0540 0.0550
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0580 0.0570 0.0580 0.0590 0.0600 0.0610
System Process 0.0000 0.5000 0.5000 0.5000 0.5000 0.5000
Unaccounted-for 0.0158 0.0758 0.0766 0.0772 0.0779 0.0784

Adjusted unaccounted-for demand to 8% of total demand which is the historical median.

Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000
Ground Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Purchases 0.5000 0.5000 0.5000 0.5000 0.5000 0.5000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.5000 1.5000 1.5000 1.5000 1.5000 1.5000
Service Area Demand 0.3708 0.9438 0.9516 0.9592 0.9669 0.9744
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.3708 0.9438 0.9516 0.9592 0.9669 0.9744
Demand as Percent of Supply 25% 63% 63% 64% 64% 65%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 89 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.

Are there other demand management practices you will implement to reduce your future supply needs?

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?

How does the water system intend to implement the demand management and supply planning components above?

Additional Information

Has this system participated in regional water supply or water use planning?  No

What major water supply reports or studies were used for planning?

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.
