Belhaven

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name: Belhaven   PWSID: 04-07-015
Mailing Address:PO Box 220
Belhaven, NC 27810		Ownership:Municipality

Contact Person:Stephen HallTitle:Water Superintendent
Phone:252-943-3055Cell/Mobile:--

Secondary Contact:Joey White Phone:336-812-6088
Mailing Address:1402 Robersonville Road
Washington, NC 27889		Cell/Mobile:--
Distribution System
Line Type Size Range (Inches) Estimated % of lines
Asbestos Cement 4-8 15.00 %
Cast Iron 4-10 35.00 %
Ductile Iron 4-8 15.00 %
Galvanized Iron .75-2 5.00 %
Polyvinyl Chloride 2- 8 30.00 %
What are the estimated total miles of distribution system lines?   16 Miles
How many feet of distribution lines were replaced during 2025?   2,650 Feet
How many feet of new water mains were added during 2025?   0 Feet
How many meters were replaced in 2025?   25
How old are the oldest meters in this system?   36 Year(s)
How many meters for outdoor water use, such as irrigation, are not billed for sewer services?   40
What is this system's finished water storage capacity?   0.5000 Million Gallons
Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included.   No

Replaced 2,650' of 4" cast water line with 6" PVC.

Programs
Does this system have a program to work or flush hydrants?   Yes, Annually
Does this system have a valve exercise program?   Yes, Annually
Does this system have a cross-connection program?   Yes
Does this system have a program to replace meters?   Yes
Does this system have a plumbing retrofit program?   No
Does this system have an active water conservation public education program?   Yes
Does this system have a leak detection program?   Yes

Employees look for leaks as they perform daily operations and contact NCRWA for assistance when needed.

Water Conservation
What type of rate structure is used?   Increasing Block
How much reclaimed water does this system use?   0.0000 MGD   For how many connections?   0
Does this system have an interconnection with another system capable of providing water in an emergency?   Yes

2. Water Use Information

Service Area
Sub-Basin(s)% of Service Population
Pamlico River & Sound (15-3)100 %
County(s)% of Service Population
Beaufort100 %
What was the year-round population served in 2025?   1,960
Has this system acquired another system since last report?   No
Water Use by Type
Type of Use Metered
Connections		 Metered
Average Use (MGD)		 Non-Metered
Connections		 Non-Metered
Estimated Use (MGD)
Residential 776 0.0615 0 0.0000
Commercial 117 0.0207 0 0.0000
Industrial 0 0.0000 0 0.0000
Institutional 0 0.0000 0 0.0000

How much water was used for system processes (backwash, line cleaning, flushing, etc.)?   0.0317 MGD

Water Sales
Purchaser PWSID Average
Daily Sold
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Beaufort County (Northside) 04-07-035 0.0000 0 Yes Yes 4-10 Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases
Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)		 Average Daily
Use (MGD)		 Max Day
Use (MGD)
Jan 0.1440 0.3390 May 0.1330 0.1680 Sep 0.1250 0.1730
Feb 0.1310 0.1730 Jun 0.1340 0.1590 Oct 0.1240 0.1530
Mar 0.1210 0.1610 Jul 0.1370 0.1950 Nov 0.1310 0.1600
Apr 0.1320 0.1520 Aug 0.1410 0.2310 Dec 0.1260 0.2120

Monthly values were updated using data from the CCP CUA report.

Ground Water Sources
Name or Number Average Daily Withdrawal (MGD) Max Day Withdrawal (MGD) 12-Hour Supply
(MGD)		 CUA Reduction Year Offline Use Type
MGD Days Used
1 0.0689 244 0.1703 0.3600 CUA0 Regular
2 0.0630 244 0.1151 0.3600 CUA0 Regular
3 0.0650 244 0.1688 0.3600 CUA0 Regular
Ground Water Sources (continued)
Name or Number Well Depth (Feet) Casing Depth
(Feet)		 Screen Depth (Feet) Well Diameter (Inches) Pump Intake Depth (Feet) Metered?
Top Bottom
1 160 105 155 10 90 Yes
2 150 95 145 10 90 Yes
3 133 95 128 10 90 Yes
Are ground water levels monitored?   Yes, Monthly
Does this system have a wellhead protection program?   Yes
Water Purchases From Other Systems
Seller PWSID Average
Daily Purchased
(MGD)		 Days
Used		 Contract Required to
comply with water
use restrictions?		 Pipe Size(s)
(Inches)		 Use
Type
MGD Expiration Recurring
Beaufort County (Northside) 04-07-035 0.0000 0 0.0000 2020 Yes Yes 8-12 Emergency
Water Treatment Plants
Plant Name Permitted Capacity
(MGD)		 Is Raw Water Metered? Is Finished Water Ouput Metered? Source
Belhaven Water Treatment Plant 0.5000 Yes Yes Ground Water
Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2025?  No
     If yes, was any water conservation implemented?  No
Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years?  No

4. Wastewater Information

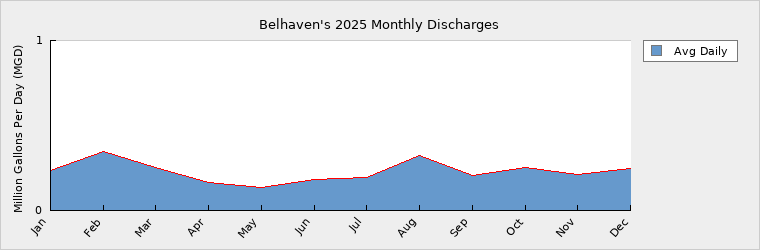

Monthly Discharges
Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)		 Average Daily
Discharge (MGD)
Jan 0.2380 May 0.1350 Sep 0.2050
Feb 0.3450 Jun 0.1840 Oct 0.2520
Mar 0.2530 Jul 0.1970 Nov 0.2110
Apr 0.1660 Aug 0.3240 Dec 0.2480

How many sewer connections does this system have?   1,051
How many water service connections with septic systems does this system have?   2
Are there plans to build or expand wastewater treatment facilities in the next 10 years?   No
Wastewater Permits
Permit Number Type Permitted Capacity
(MGD)		 Design Capacity
(MGD)		 Average Annual
Daily Discharge
(MGD)		 Maximum Day Discharge
(MGD)		 Receiving Stream Receiving Basin
NC0026492 WWTP 1.0000 1.0000 0.2000 1.1000 Battalina Creek Pamlico River & Sound (15-3)
NC0086584 WTP 0.2200 0.1250 0.0300 0.1000 Pantego Creek Pamlico River & Sound (15-3)

5. Planning

Projections
  2025 2030 2040 2050 2060 2070
Year-Round Population 1,960 1,964 1,969 1,975 1,980 1,985
Seasonal Population 0 0 0 0 0 0

Residential 0.0615 0.0616 0.0617 0.0618 0.0619 0.0620
Commercial 0.0207 0.0207 0.0208 0.0208 0.0208 0.0209
Industrial 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Institutional 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
System Process 0.0317 0.0318 0.0319 0.0321 0.0323 0.0325
Unaccounted-for 0.0177 0.0177 0.0178 0.0178 0.0179 0.0179
Demand v/s Percent of Supply
  2025 2030 2040 2050 2060 2070
Surface Water Supply 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Ground Water Supply 1.0800 1.0800 1.0800 1.0800 1.0800 1.0800
Purchases 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Supplies 0.0000 0.0000 0.0000 0.0000 0.0000
Total Available Supply (MGD) 1.0800 1.0800 1.0800 1.0800 1.0800 1.0800
Service Area Demand 0.1316 0.1318 0.1322 0.1325 0.1329 0.1333
Sales 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000
Future Sales 0.0000 0.0000 0.0000 0.0000 0.0000
Total Demand (MGD) 0.1316 0.1318 0.1322 0.1325 0.1329 0.1333
Demand as Percent of Supply 12% 12% 12% 12% 12% 12%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 31 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here.    No Changes

Are there other demand management practices you will implement to reduce your future supply needs?   No Changes

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs?   No Changes

How does the water system intend to implement the demand management and supply planning components above?   No Changes

Additional Information

Has this system participated in regional water supply or water use planning?  Yes, The Town is within the CCPCUA.

What major water supply reports or studies were used for planning?  CCPCUA

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:   Radio read water meters would be a great addition to the Town to help with potential water loss, improved billing, and response to customer questions.
