Hertford

The Division of Water Resources (DWR) provides the data contained within this Local Water Supply Plan (LWSP) as a courtesy and service to our customers. DWR staff does not field verify data. Neither DWR, nor any other party involved in the preparation of this LWSP attests that the data is completely free of errors and omissions. Furthermore, data users are cautioned that LWSPs labeled PROVISIONAL have yet to be reviewed by DWR staff. Subsequent review may result in significant revision. Questions regarding the accuracy or limitations of usage of this data should be directed to the water system and/or DWR.

1. System Information

Contact Information

Complete

Water System Name:	Hertford		PWSID:	04-72-010
Mailing Address:	P.O. Box 32 Hertford, NC 27944		Ownership:	Municipality

Contact Person:	Harold F. Sanchez		Title:	Chief Water Plant Operator
Phone:	252-370-3831		Cell/Mobile:	252-370-3831

Secondary Contact:	Chad White			Phone:	252-333-0783
Mailing Address:	P.O. Box 32 Hertford, NC 27944	Cell/Mobile:		252-370-3831

Distribution System

Line Type	Size Range (Inches)	Estimated % of lines
Asbestos Cement	6-14	6.00 %
Cast Iron	4-8	64.00 %
Galvanized Iron	.75-2	1.00 %
Polyvinyl Chloride	2-12	29.00 %

What are the estimated total miles of distribution system lines? 38 Miles

How many feet of distribution lines were replaced during 2023? 0 Feet

How many feet of new water mains were added during 2023? 0 Feet

How many meters were replaced in 2023? 20

How old are the oldest meters in this system? 64 Year(s)

How many meters for outdoor water use, such as irrigation, are not billed for sewer services? 3

What is this system's finished water storage capacity? 0.7500 Million Gallons

Has water pressure been inadequate in any part of the system since last update? Line breaks that were repaired quickly should not be included. No

Programs

Does this system have a program to work or flush hydrants? Yes, Annually

Does this system have a valve exercise program? No, As Needed

Does this system have a cross-connection program? Yes

Does this system have a program to replace meters? Yes

Does this system have a plumbing retrofit program? No

Does this system have an active water conservation public education program? No

Does this system have a leak detection program? No

Water Conservation

What type of rate structure is used? Flat/Fixed

How much reclaimed water does this system use? 0.0000 MGD For how many connections? 0

Does this system have an interconnection with another system capable of providing water in an emergency? Yes

2. Water Use Information

Service Area

Sub-Basin(s)	% of Service Population
Albemarle Sound (12-1)	100 %

County(s)	% of Service Population
Perquimans	100 %

What was the year-round population served in 2023? 1,931

Has this system acquired another system since last report? No

Water Use by Type

Type of Use	Metered Connections	Metered Average Use (MGD)
Residential	878	0.0820
Commercial	140	0.0240
Industrial	0	0.0000
Institutional	8	0.0290

How much water was used for system processes (backwash, line cleaning, flushing, etc.)? 0.0230 MGD

Water Sales

Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Purchaser	PWSID	Average Daily Sold (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Perquimans Co	04-72-025	0.0000	0	0.0000	9999	Yes	Yes	6	Emergency

3. Water Supply Sources

Monthly Withdrawals & Purchases

	Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)		Average Daily Use (MGD)	Max Day Use (MGD)
Jan	0.2520	0.5640	May	0.2640	0.4180	Sep	0.2990	0.4420
Feb	0.2590	0.3590	Jun	0.2730	0.5670	Oct	0.2950	0.5930
Mar	0.2570	0.3600	Jul	0.2910	0.5620	Nov	0.2600	0.4370
Apr	0.2480	0.3030	Aug	0.2880	0.5000	Dec	0.2620	0.4070

Ground Water Sources

Name or Number	Average Daily Withdrawal (MGD)		Max Day Withdrawal (MGD)	12-Hour Supply (MGD)	CUA Reduction	Year Offline	Use Type
Name or Number	MGD	Days Used	Max Day Withdrawal (MGD)	12-Hour Supply (MGD)	CUA Reduction	Year Offline	Use Type
W01	0.1730	365	0.407	0.2400			Regular
W02	0.0420	365	0.091	0.0820			Regular
W03	0.0410	365	0.256	0.1200			Regular

Ground Water Sources (continued)

Name or Number	Well Depth (Feet)	Casing Depth (Feet)	Screen Depth (Feet)		Well Diameter (Inches)	Pump Intake Depth (Feet)	Metered?
Name or Number	Well Depth (Feet)	Casing Depth (Feet)	Top	Bottom	Well Diameter (Inches)	Pump Intake Depth (Feet)	Metered?
W01	125	87	55	120	10	120	Yes
W02	117	78	78	108	10	85	Yes
W03	140	20	44	80	8	42	Yes

Are ground water levels monitored? Yes, As Needed

Does this system have a wellhead protection program? Yes

The monthly numbers and well withdrawals are measured by different meters. The well numbers are possibly underestimating the withdrawals. The Town is working to address discrepancies in the readings and may purchase new meters.

Water Purchases From Other Systems

Seller	PWSID	Average Daily Purchased (MGD)	Days Used	Contract			Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Seller	PWSID	Average Daily Purchased (MGD)	Days Used	MGD	Expiration	Recurring	Required to comply with water use restrictions?	Pipe Size(s) (Inches)	Use Type
Perquimans Co	04-72-025	0.0000	0	0.0000	9999	Yes	Yes	6	Emergency

Water Treatment Plants

Plant Name	Permitted Capacity (MGD)	Is Raw Water Metered?	Is Finished Water Ouput Metered?	Source
Hertford Water Plant	0.5000	Yes	Yes	Wells

Did average daily water production exceed 80% of approved plant capacity for five consecutive days during 2023? No

If yes, was any water conservation implemented?

Did average daily water production exceed 90% of approved plant capacity for five consecutive days during 2023? No

If yes, was any water conservation implemented?

Are peak day demands expected to exceed the water treatment plant capacity in the next 10 years? No

4. Wastewater Information

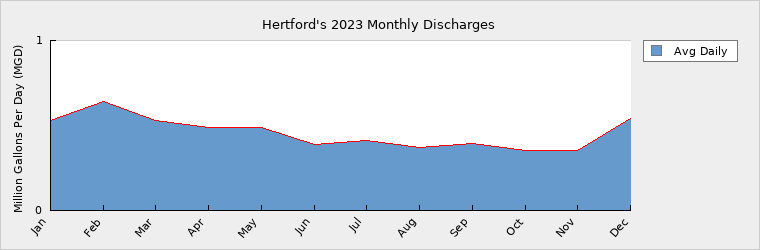

Monthly Discharges

	Average Daily Discharge (MGD)		Average Daily Discharge (MGD)		Average Daily Discharge (MGD)
Jan	0.5320	May	0.4890	Sep	0.3970
Feb	0.6440	Jun	0.3910	Oct	0.3500
Mar	0.5300	Jul	0.4130	Nov	0.3550
Apr	0.4890	Aug	0.3720	Dec	0.5390

How many sewer connections does this system have? 991

How many water service connections with septic systems does this system have? 28

Are there plans to build or expand wastewater treatment facilities in the next 10 years? No

Wastewater Permits

Permit Number	Type	Permitted Capacity (MGD)	Design Capacity (MGD)	Average Annual Daily Discharge (MGD)	Maximum Day Discharge (MGD)	Receiving Stream	Receiving Basin
NC0021849	WWTP	0.7000	1.1000	0.4580	1.2000	Perquimans River	Albemarle Sound (12-1)

Wastewater Interconnections

Water System	PWSID	Type	Average Daily Amount		Contract Maximum (MGD)
Water System	PWSID	Type	MGD	Days Used	Contract Maximum (MGD)
Winfall	04-72-015	Receiving	0.1240	365	0.1000

5. Planning

Projections

	2023	2030	2040	2050	2060	2070
Year-Round Population	1,931	1,972	2,014	2,057	2,101	2,146
Seasonal Population	0	0	0	0	0	0

Residential	0.0820	0.0837	0.0855	0.0873	0.0892	0.0911
Commercial	0.0240	0.0245	0.0250	0.0256	0.0261	0.0267
Industrial	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Institutional	0.0290	0.0296	0.0302	0.0309	0.0315	0.0322
System Process	0.0230	0.0231	0.0232	0.0233	0.0235	0.0236
Unaccounted-for	0.0980	0.0675	0.0678	0.0681	0.0685	0.0688

In 2024 thru 2026 approximately 12,000 linear feet of water line will be replaced. This will help reduce the amount of water that is unaccounted for in the 2030 cycle.

Demand v/s Percent of Supply

	2023	2030	2040	2050	2060	2070
Surface Water Supply	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Ground Water Supply	0.4420	0.4420	0.4420	0.4420	0.4420	0.4420
Purchases	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Future Supplies		0.0000	0.0000	0.0000	0.0000	0.0000
Total Available Supply (MGD)	0.4420	0.4420	0.4420	0.4420	0.4420	0.4420
Service Area Demand	0.2560	0.2284	0.2317	0.2352	0.2388	0.2424
Sales	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
Future Sales		0.0000	0.0000	0.0000	0.0000	0.0000
Total Demand (MGD)	0.2560	0.2284	0.2317	0.2352	0.2388	0.2424
Demand as Percent of Supply	58%	52%	52%	53%	54%	55%

The purpose of the above chart is to show a general indication of how the long-term per capita water demand changes over time. The per capita water demand may actually be different than indicated due to seasonal populations and the accuracy of data submitted. Water systems that have calculated long-term per capita water demand based on a methodology that produces different results may submit their information in the notes field.

Your long-term water demand is 42 gallons per capita per day. What demand management practices do you plan to implement to reduce the per capita water demand (i.e. conduct regular water audits, implement a plumbing retrofit program, employ practices such as rainwater harvesting or reclaimed water)? If these practices are covered elsewhere in your plan, indicate where the practices are discussed here. In 2024 thru 2026 approximately 12,000 liner feet of water line will be replaced, this in conjunction with any grants the town can receive for lead line replacement, will help reduce the amount of water that is unaccounted for in the 2030 cycle.

Are there other demand management practices you will implement to reduce your future supply needs? no change

What supplies other than the ones listed in future supplies are being considered to meet your future supply needs? We will be looking into installing a 4th well for the towns potable water supply.

How does the water system intend to implement the demand management and supply planning components above? no change

Additional Information

Has this system participated in regional water supply or water use planning? No

What major water supply reports or studies were used for planning? Monthly water reports, monthly billing breakdown. Well production reports and wastewater discharge reports.

Please describe any other needs or issues regarding your water supply sources, any water system deficiencies or needed improvements (storage, treatment, etc.) or your ability to meet present and future water needs. Include both quantity and quality considerations, as well as financial, technical, managerial, permitting, and compliance issues:
